Emlid Reach RS+

Single-band RTK GNSS receiver with centimetre precision

For surveying, mapping & navigation.
Comes with a mobile app.

AU$1849

Emlid co-founder and CEO Igor Vereninov on what Reach RS+ is and how it works.

iOS &
Android

Surveying with Emlid Flow

The most user-friendly software for data collection that is available both for Android and iOS. Supports thousands of coordinate systems and is translated into multiple languages. With Emlid Flow, you can collect and stake out points and control all the features of Reach receivers, such as setting up a base station, logging RINEX data, and configuring NMEA output.

Point collection: save points, & export data to CSV

Create a survey project and collect data in your local coordinate system.

Coordinate systems based on

WGS84, NAD83, GDA2020
and others

Stakeout: find points position on the ground

Stakeout is used to find exact physical locations of points. They can be collected in Emlid Flow or imported from other CAD or GIS software.

Logging in RINEX: record raw data, position, and base correction logs

Record raw data, position and base correction logs. Point collection and recording of RAW data are independent processes and can be used simultaneously. Emlid Flow has a simple and intuitive interface for logging configuration and control.

We provide our version of RTKLib for PPK. It’s free and can be downloaded from our docs.

8 GB

storage

80+ days

of logging 1 at Hz

Connectivity

Real-time position Streaming in NMEA

Reach provides data in standard NMEA that is used by most GIS apps. Simply connect your device to Reach over Bluetooth or with a cable, and turn on “Position output” in Emlid Flow.

Compatible apps

MachineryGuide, AgriBus-Navi, Efarmer, Agripilot, and others

Reach can turn on & off automatically

Reach can turn on and off in sync with an external battery connected over RS-232. This helps when the power button is hard to reach, for example, if the receiver is placed on the roof of a tractor.

Position streaming
Interfaces

RS-232, TCP, Bluetooth

NTRIP or another Reach as a base station

Reach RS+ needs a base station as a source of corrections. That’s a requirement for centimeter accuracy in RTK and PPK. The base might be another Reach RS+ receiver or an NTRIP service. VRS is also supported.

Reach RS+ works seamlessly with other Reach receivers over any link.

Input & output corrections
Interfaces

TCP, LoRa, Bluetooth, RS-232, NTRIP

Formats

RTCM3

Max distance from a base

Up to 10 km in RTK & 20 km in PPK

Reach RS+ is designed for harsh conditions

Dense forests, mountains, frost, heat and water, Reach can handle it all

IP67

Can be held 1 meter deep underwater for half an hour.

-20 to +65 ºС

Working temperature. Isn’t afraid of either heat or cold.

30 hours

Industrial LiFePO4 battery that doesn’t die when cold. Charges over USB from a powerbank.

Emlid support

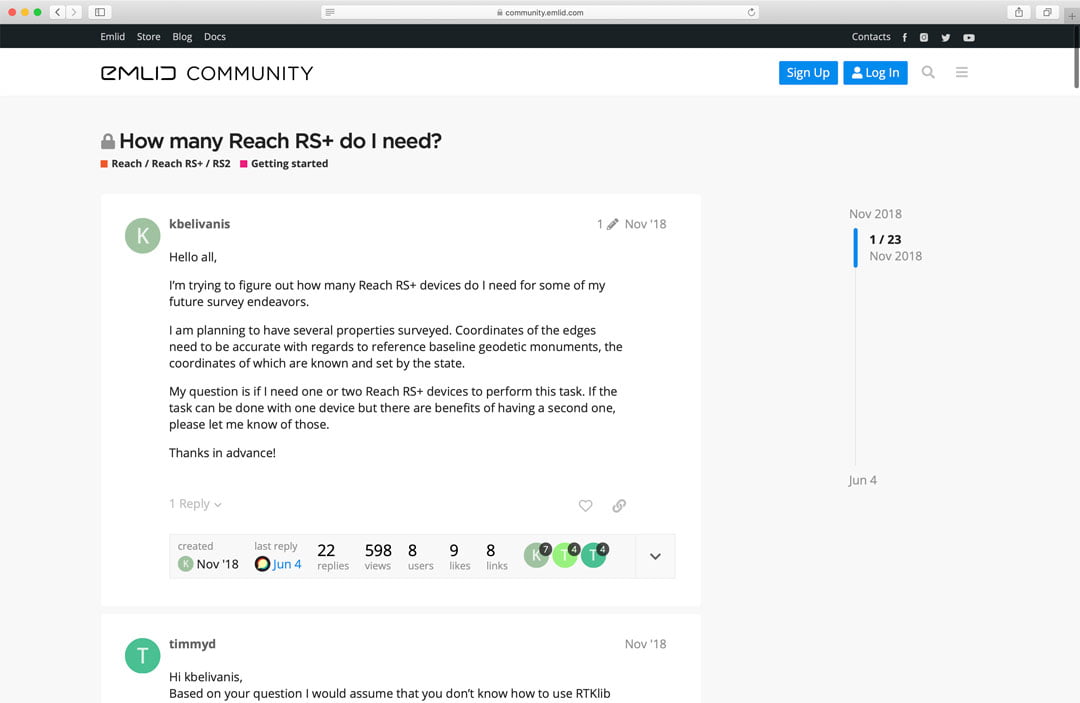

Community forum

Join the Forum and Facebook User Group to get in touch with Emlid team, get tips and insights, and build connections with Emlid users from around the world.

To get help general questions and configuration, contact our application engineers directly via Facebook or WhatsApp.

Tutorials

Quickstart guides and comprehensive feature overview.

Step-by-step tutorials covering most common applications. Regularly updated by our support team based on the most frequently asked questions.

Specification

Mechanical

Dimensions

145 x 145 x 85 mm

Weight

690 g

Operating tº

-20 to +65 ºC

Ingress protection

IP67

Electrical

Autonomy

Up to 30 hrs

Battery

LiFePO4 3.2 V

External power input

6–40 V

Charging

MicroUSB 5 V

Certification

FCC, CE

Positioning

Static horizontal

5 mm + 1 ppm

Static vertical

10 mm + 2 ppm

Kinematic horizontal

7 mm + 1 ppm

Kinematic vertical

14 mm + 2 ppm

Connectivity

LoRa radio, Frequency range, Distance


868/915 MHz
Up to 8 km

Wi-Fi

802.11 b/g/n

Bluetooth

4.0/2.1 EDR

Ports

RS-232, MicroUSB

Data

Corrections

NTRIP, RTCM3

Position output

NMEA, LLH/XYZ

Data logging

RINEX with events
with update rate up to 14 Hz

Internal storage

8 GB

GNSS

Signal tracked

GPS/QZSS L1, GLONASS G1,
BeiDou B1, Galileo E1, SBAS

Number of channels

72

Update rates

14 Hz / 5 Hz

IMU

9DOF
