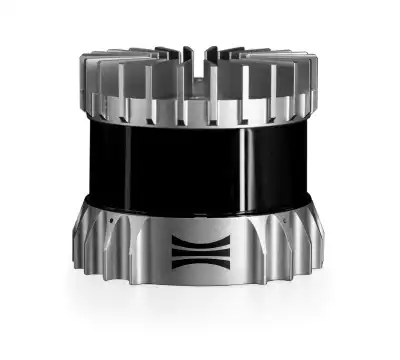

OS0

Ultra-wide 90° field of view digital Lidar sensor

The most performant ultra-wide field of view sensor available. Superior performance in near-range object classification in the warehouse or on the open road - powered by our new L3 chip.

35 m

Range at 10%

100 m

Max range

90º

Vertical Field of View

128

Channels of resolution

5.2M

Max points per second

10x

Photon sensitivity

90º of vertical vision

The ultra-wide view OS0 sees everything from the floor to the ceiling.
Your vehicle will never miss a curb, a pallet, or overhead obstacles.

Stunning point clouds

With 128 channels of resolution and up to 5.2M points per second, the OS0 sees more than every other ultra-wide sensor on the market. The OS0 delivers clean, dense data across the entire field of view, for accurate perception and crisp mapping.

Redefines "short range"

The OS0 now sees over 35m on a 10% reflective target, with a maximum measurement range over 100m. That’s a full city block, and more than a full warehouse aisle.

Built for real-world reliability

With a simple digital design and new automotive-grade components, OS0 is designed to withstand the rigors of daily use in even the most extreme environments.

-40°C

Min operating temperature

60°C

Max operating temperature

IP68 & IP69K

Ingress protection

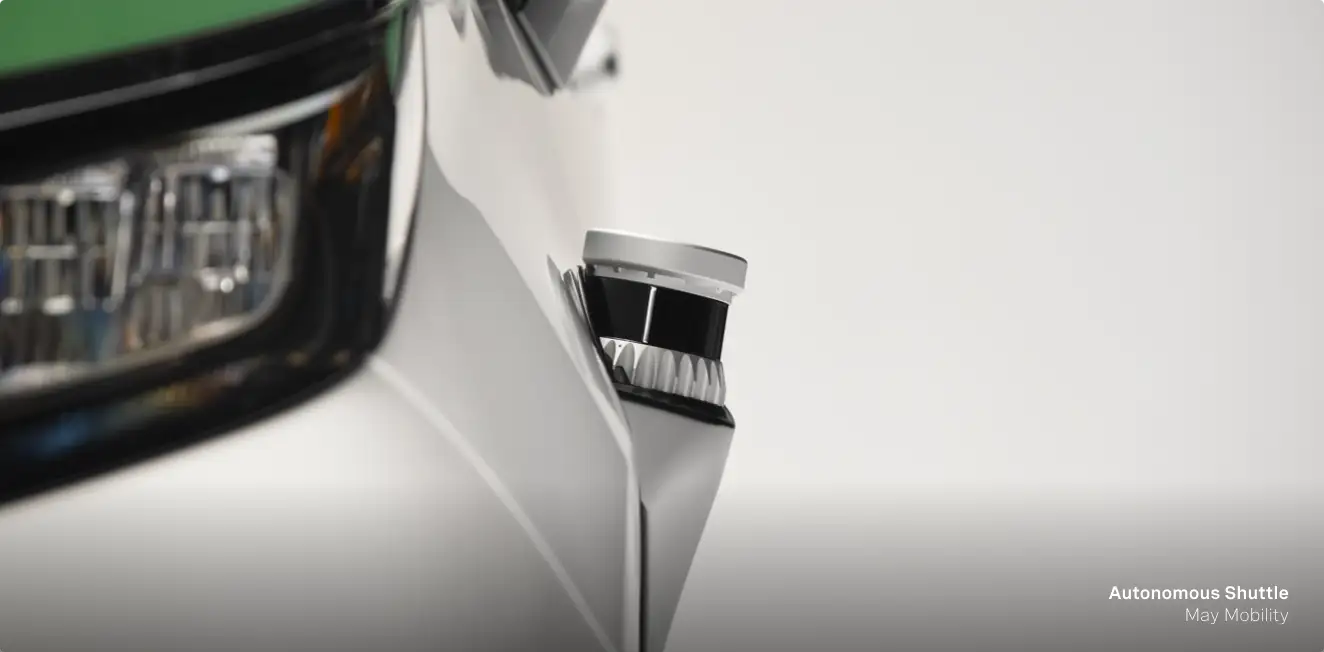

Autonomy ready

With industry-leading range and resolution, and 1000BASE-T1 automotive ethernet now available, the OS0 is ready to be the short-range sensor of choice for advancing autonomy on and off the road.

Clear data in any condition

Other Lidar sensors can be effectively blinded by dust and fog, but not the OS0. Two returns and large-aperture lasers ensure you won’t lose near-field view in dusty or foggy conditions.


Industrial OS

For high-volume fleet deployments, Ouster offers the Industrial OS version of the OS0 to meet the performance and volume pricing needs of the world’s largest OEMs.

Powered By Our All-New L3 Chip

The L3 chip delivers on the promise of digital Lidar, with step-change upgrades to range, precision, accuracy, and reliability.

21.47 Gmacs

Of signal processing

125 Million

Transistors on chip

5.2 Million

Max points per second

High-Volume Manufacturing

With scalable outsourced manufacturing, Ouster can fulfill even the largest customer orders.

Worldwide Fulfillment

Ouster now operates local fulfillment in three major global regions. That means faster lead times for committed orders and tax advantages for lower total costs.

Buy America(n) Certified.

USA based manufacturing is available for customers that require Buy America and Buy American certification.
