Emlid Reach RX

Network RTK rover with centimetre accuracy

Pocket sized & lightweight receiver.
Works with NTRIP corrections.

AU$3199

Easy to set up: just add NTRIP

Reach RX uses Bluetooth, allowing you to connect and start surveying in a few seconds. No settings to get wrong.
1

Enable Bluetooth on your device and find your Reach RX in Emlid Flow

2

Add network
correction credentials

3

Collect your first point

Pocket-sized & lightweight

The weight of Reach RX is just 250 grams.
Take it anywhere—it weighs less than a
can of soda and fits in any glove
compartment or a backpack pocket.

Centimetre
accurate data

Reach RX tracks GPS/QZSS, Galileo,
GLONASS, and BeiDou and gets a fix in
under 5 seconds even in challenging
conditions.

Anyone on the team
can use RTK

Reach RX is designed to meet the expectations of both experienced professionals and non-surveyors who need to get highly-accurate results. No training is required.
iOS
Android

Surveying with
Emlid Flow

With Emlid Flow, quickly set up the Reach RX and start work collecting or staking out points. The app supports thousands of coordinate systems and is translated into multiple languages.

Get Emlid Flow for iOS - download from the App Store
Get Emlid Flow for Android - download from Google Play

Point collection: save points & export data to CSV

Record centimetre-precise coordinates for each point.
Export and import data in the CSV, DXF, and Shapefile formats used by CAD, GIS, and most other professional survey software. Share collected data using WhatsApp, Drive, Mail, or any other file-sharing app on your phone.















Cordinate systems based on

WGS84, NAD83, GDA2020, and others

Stakeout

Stakeout is used to find the exact locations of points. They can be collected in Emlid Flow or imported from other CAD or GIS software.

Export & import formats

CSV, DXF and Shapefile

Use your favourite Android app

If you prefer to stick to your favorite app, you can stream your positional information from Reach RX in NMEA and continue gathering data for your project using your familiar interface.

Compact & rugged

250g
172 mm x 51mm x 51mm

Weighs like a TV remote controller and can be carried in your pocket.

-20 to +65 °C (-4 to 149°F)

We extensively tested Reach RX in conditions that simulate the coldest winters and hottest summers.

IP68

RX is waterproof up to 1.5 m depth. The connector is sealed and protected from water and dust with a silicone plug.



Reliable battery

16 hours of work

2 days of work for less than 3 hours of charging. You can charge on-the-go from any USB port and power bank.

Li-ion battery

Industrial battery that handles both high and low temperatures well.

2000+ cycles

Of charging and discharging while maintaining original capacity.

The versatile solution
for your fieldwork

Add Reach RS2+ as a base station

Don’t have NTRIP nearby? Run your own NTRIP service with Reach RS2+ as a base and Emlid Caster. Then you can add as many RX rovers as you need, and you’re ready to go.

Foldable survey pole

Our foldable survey pole is perfect for smooth data collection with Reach RX. You can carry this combo anywhere and shoot points anytime – a great addition to your toolbox on the survey site.

Deploy Reach RX for teamwork

If you have a big project team, Reach RX is a perfect fit. With no configuration to get wrong, your can be sure your team is collecting reliable data.

Emlid support

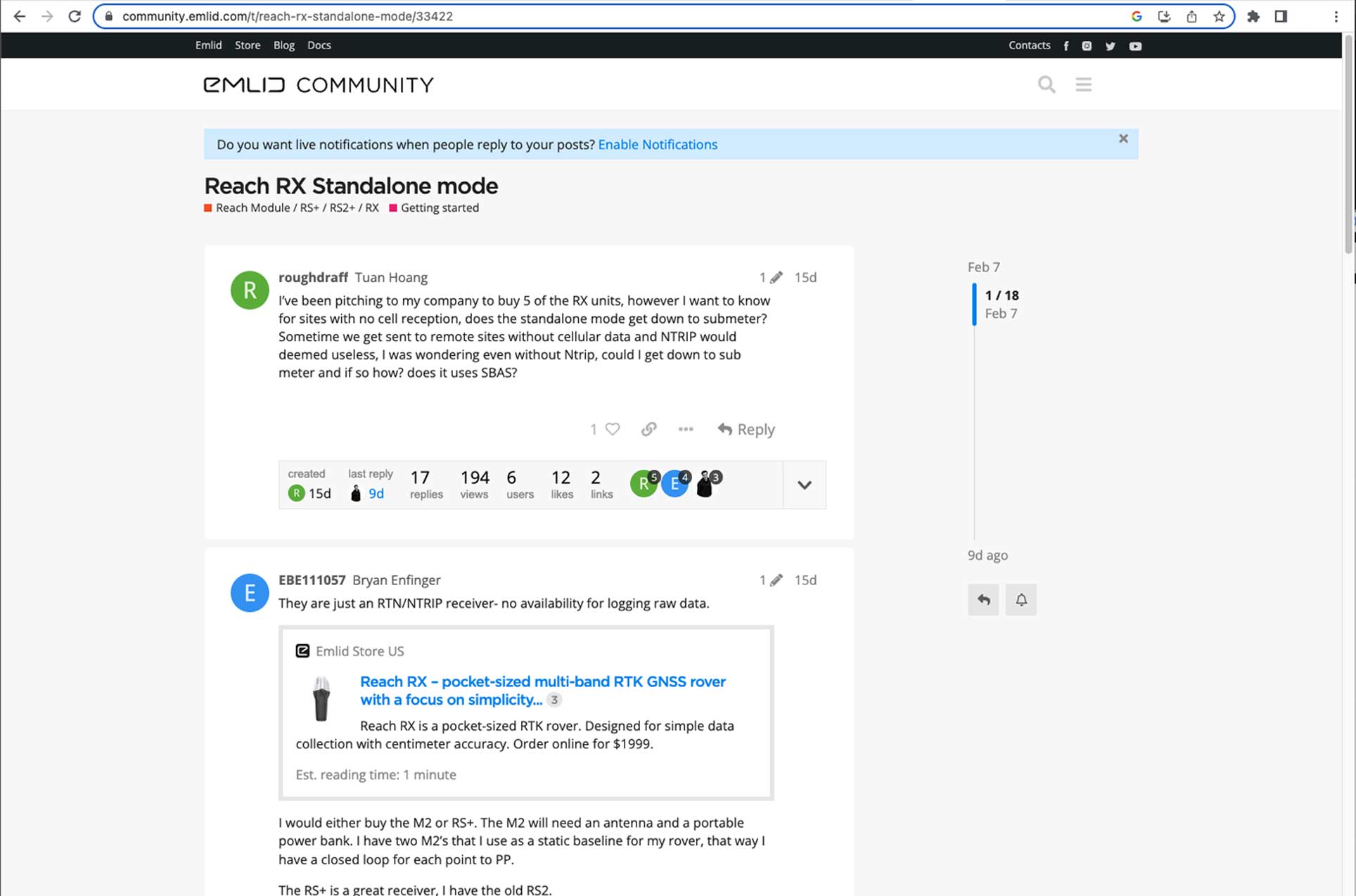

Community forum

Join the Forum and Facebook User Group to get in touch with Emlid team, get tips and insights, and build connections with Emlid users from around the world.

To get help general questions and configuration, contact our application engineers directly via Facebook or WhatsApp.



Tutorials

Quickstart guides and comprehensive feature overview.

Step-by-step tutorials covering most common applications. Regularly updated by our support team based on the most frequently asked questions.



Specification

Stakeout

DIMENSIONS

172 x 51 x 51 mm

MOUNT

5/8”-11 UNC

WEIGHT

250 g (8.81 oz)

OPERATING Temperature

-20 to +65 ºC (-4 a 149 °F)

INGRESS PROTECTION

IP68 (maximum
depth of 1.5 meters
up to 30 minutes)

Electrical

AUTONOMY

Up to 16 hrs

BATTERY

Li-Ion 5200 mAh,
3.6V, 18.72 Wh

CHARGING

USB Type-C, 5V 2A

CERTIFICATION

FCC, CE, IC

Positioning

RTK

H: 7 mm + 1 ppm
V: 14 mm + 1 ppm

CONVERGENCE TIME

~5 s typically

Connectivity

COMMUNICATION INTERFACE

Bluetooth 4.2

PORTS

USB Type-C

Data

INPUT DATA FORMAT

RTCM3

INPUT DATA PROTOCOL

NTRIP

POSITION DATA FORMAT

NMEA

GNSS

SIGNAL TRACKED

GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF,
BeiDou B1I, B2I,
Galileo E1B/C, E5b

number of channels

184

update rate

5 Hz

Compare The Emlid Units
